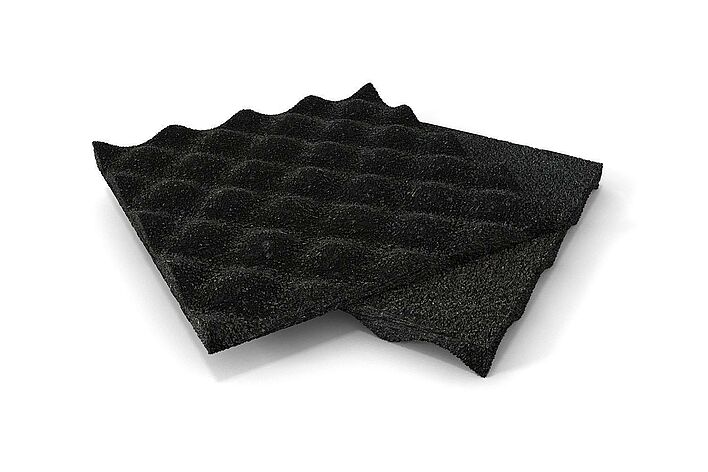

REGUPOL vibration 300

Vibration isolation

The approved material REGUPOL vibration 300 is used in the load range up to 0.05 N/mm². Depending on load and material thickness, natural frequencies of 12 Hz can be achieved.

REGUPOL vibration 300 is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.05 N/mm². It can be used in single or multiple layers to achieve natural frequencies of down to 12 Hz, depending on load and material thickness.

Save product View range

Projects realised with REGUPOL vibration 300

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUPOL vibration 300.

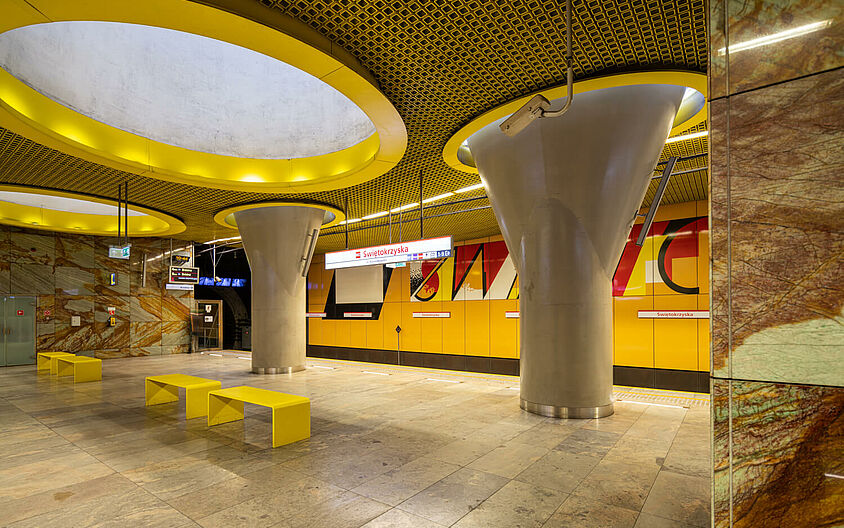

Public transport with a feel-good factor – Warsaw Metro

Metro stations and aesthetics: anyone could probably list several cities where the combination of the two seems to be mutually exclusive. In Warsaw, however, you actually experience a unique coexistence of public transport and feel-good atmosphere. With only two lines, the Warsaw…

Approved by building authorities
Load range up to 0.02 N/mm²
Natural frequency of down to 10 Hz
Progressive spring characteristics
Constant natural frequency over a wide load range

Save product

Technical Specifications

Material

PUR elastomer composite

Dimensions

Length: 10,000 mm, width: 1250 mm,
thickness: 17 mm

Weight per m²

7.2 kg

Downloads

REGUPOL Urban Densification Brochure | 5.27 MB

REGUPOL Mixed Use Brochure | 5.69 MB

REGUPOL vibration 300 TD | 818.40 KB

Technical Data | 6.43 MB

REGUPOL vibration IG | 628.48 KB

Cradle to Cradle Certified^® Bronze | 156.63 KB

EPD – Environmental Product Declaration | 1.20 MB

Your contact at REGUPOL

We're here to help.

Acoustic Sales
REGUPOL Australia Pty. Ltd.
Sales Team Australia

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUPOL vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
