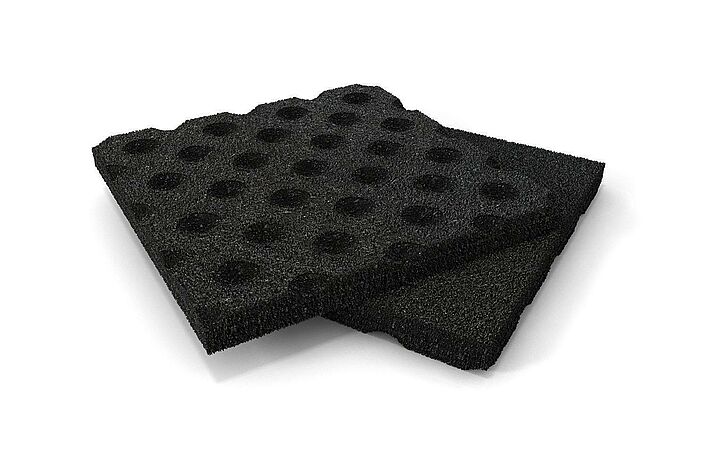

REGUPOL vibration 400
Vibration isolation
The approved material REGUPOL vibration 400 is used in the load range up to 0.10 N/mm². Depending on load and material thickness, natural frequencies of 11 Hz can be achieved.
REGUPOL vibration 400is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.10 N/mm². It can be used in single or multiple layers to achieve natural frequencies of down to 11 Hz, depending on load and material thickness.
Features
- Approved by building authorities
- Load range up to 0.10 N/mm²
- Natural frequency of down to 11 Hz
- Progressive spring characteristics
- Constant natural frequency over a wide load range
Technical Specifications
Material
PUR-bonded rubber fibres
Dimensions
Length: 10,000 mm, width: 1250 mm,
thickness: 15 mm
Weight per m²
8.6 kg
