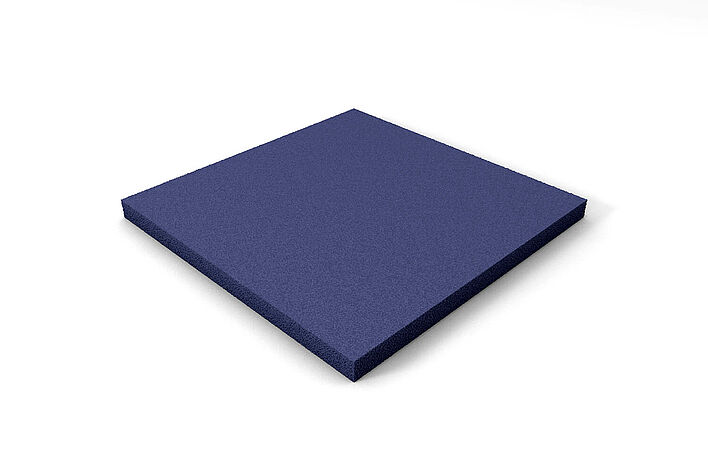

REGUFOAM vibration 220plus

Vibration isolation

REGUFOAM vibration 220plus

Vibration isolation

The approved material REGUFOAM vibration 220plus is used in the load range up to 0.028 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM vibration 220plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.028 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 9 Hz, depending on load and material thickness.

REGUFOAM vibration 220plus

Features


  • Approved by building authorities
  • Load range up to 0.018 N/mm²
  • Natural frequency of down to 9 Hz
  • Minimal material deflection

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 5000 mm, width: 1500 mm,
thickness: 12.5 mm and 25.0 mm

Weight per roll

max. 19.5 kg – thickness 12.5 mm
max. 39.0 kg – thickness 25.0 mm

Weight per m²

max. 2.6 kg – thickness 12.5 mm
max. 5.2 kg – thickness 25.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.

Ask the experts

You have questions about our REGUPOL vibration isolation or impact sound insulation products? Please don't hesitate to contact us. Our experts are…
