REGUPOL sonusfit m 513

For fitness studios

REGUPOL sonusfit m 513

For fitness studios

∆LAF,max 25 dB (58mm) and ∆LAF,max 36 dB (83mm)

The 58 mm to 83 mm thick gym system floor combines high acoustic efficiency with low installation height.

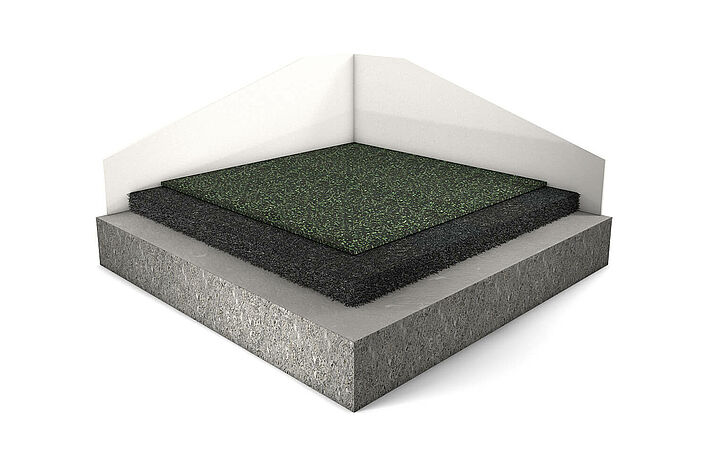

REGUPOL sonusfit m 513 is a multi-layer system consisting of two layers (previously known as REGUPOL FX). The combination of damping elastomers with REGUPOL everroll ensures acoustic effectiveness and at the same time, excellent sports functional properties.

The reduction of the maximum sound pressure level is ∆LAF,max 25 dB (58mm) and ∆LAF,max 36 dB (83mm).

REGUPOL sonusfit m 513


  • Integrated fitness floor covering for gyms
  • Perfect combination of acoustics and sport functionality
  • Flexible design for various sound protection levels
  • For retrofitting and new buildings
  • ∆LAF,max 25 dB (58mm) and ∆LAF,max 36 dB (83mm)

Technical Specifications


Polyurethane elastomer composite
Surface: REGUPOL everroll


58 mm or 83 mm

Weight per m²

approx. 37 kg (58 mm) or approx. 48 kg (83 mm)
