REGUPOL sonusfit m 517

For fitness studios

REGUPOL sonusfit m 517

For fitness studios

∆LAF,max 22 dB (48 mm) and ∆LAF,max 40 dB (88 mm)

The 48mm to 88mm thick gym system floor combines high acoustic efficiency with low installation height.

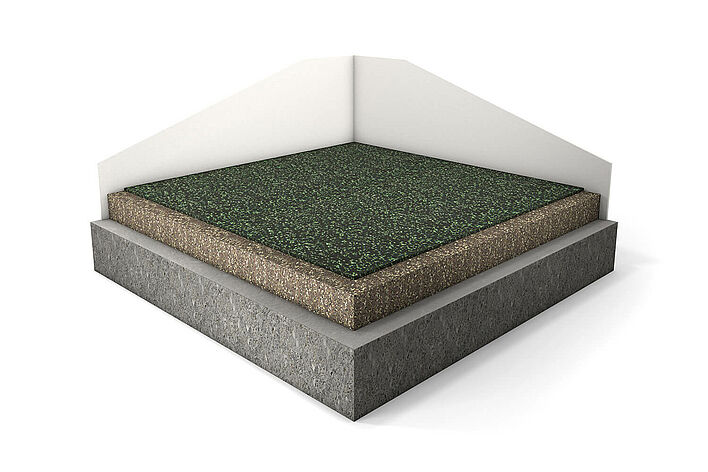

REGUPOL sonusfit m 517 is a multi-layer system consisting of two layers (previously known as REGUPOL 4080). The combination of damping elastomers with REGUPOL everroll ensures acoustic effectiveness and, at the same time, excellent sports functional properties.

The reduction of the maximum sound pressure level is ∆LAF,max   22 dB (48 mm), and ∆LAF,max   40 dB (88 mm).

REGUPOL sonusfit m 517


  • Integrated fitness floor covering for gyms
  • Perfect combination of acoustics and sport functionality
  • Flexible design for various sound protection levels
  • For retrofitting and new buildings

Technical Specifications


Polyurethane elastomer composite
Surface: REGUPOL everroll


48 mm or 88 mm

Weight per m²

approx. 19 kg/m² (48 mm)
approx. 30 kg/m² (88 mm)
