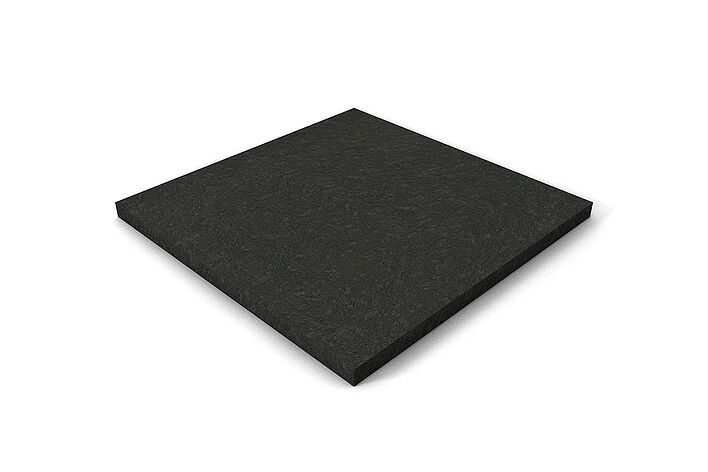

REGUPOL vibration 1000

Vibration isolation

The approved material REGUPOL vibration 1000 is used in the load range up to 1.50 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUPOL vibration 1000 is a vibration isolation and structure-borne sound decoupling material for the load range up to 1.50 N/mm². It can be used in single or multiple layers to achieve natural frequencies of down to 10 Hz, depending on load and material thickness.

Save product View range

Projects realised with REGUPOL vibration 1000

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUPOL vibration 1000.

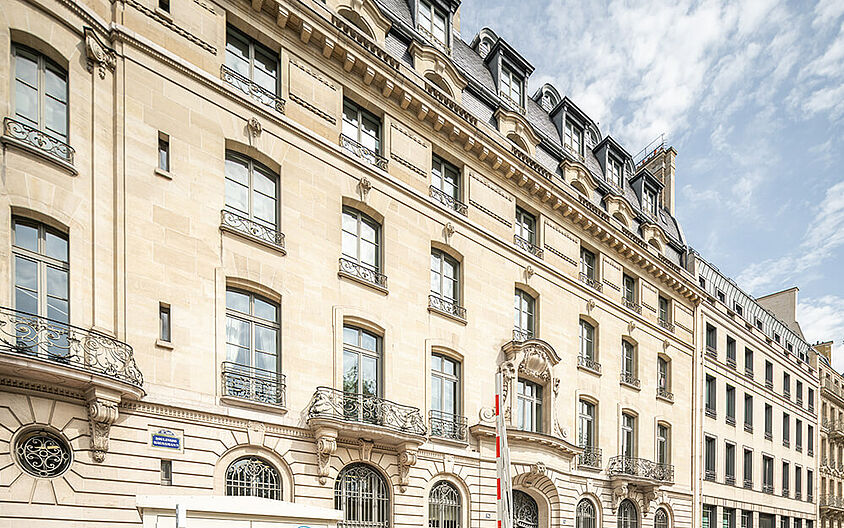

Housing complex Boulevard Haussmann Paris

This real-estate development is situated in the middle of Paris right next to the historical “Boulevard Haussmann” in between Rue d’Anjou and Rue Pasquier. This superb location is offering close proximity to shopping malls, office spaces as well as touristic spots.

The building…

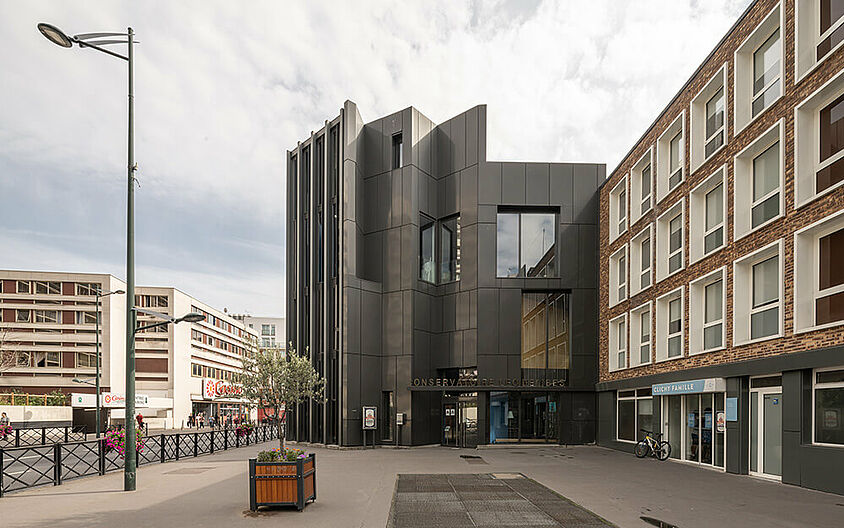

Conservatoire Léo Délibes Paris

Built in 2009, the Léo Délibes Music School now has more than 1000 students and offers a wide range of courses to meet the needs of all learners. The building is located in Clichy in the north of Paris.

The music school welcomes many musicians, who will be able to work together…

Approved by building authorities
Load range up to 1.50 N/mm²
Natural frequency of down to 10 Hz
Progressive spring characteristics
Constant natural frequency over a wide load range

Save product

Technical Specifications

Material

PUR-bonded rubber granules / fibres

Dimensions

Length: 8000 mm, width: 1250 mm,
thickness: 10 mm

Weight per m²

10.6 kg

Downloads

REGUPOL Urban Densification Brochure | 5.27 MB

REGUPOL Mixed Use Brochure | 5.69 MB

REGUPOL vibration 1000 TD | 889.59 KB

REGUPOL vibration IG | 628.48 KB

Cradle to Cradle Certified^® Bronze | 156.63 KB

EPD – Environmental Product Declaration | 1.20 MB

Your contact at REGUPOL

We're here to help.

Acoustic Sales
REGUPOL Australia Pty. Ltd.
Sales Team Australia

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUPOL vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
