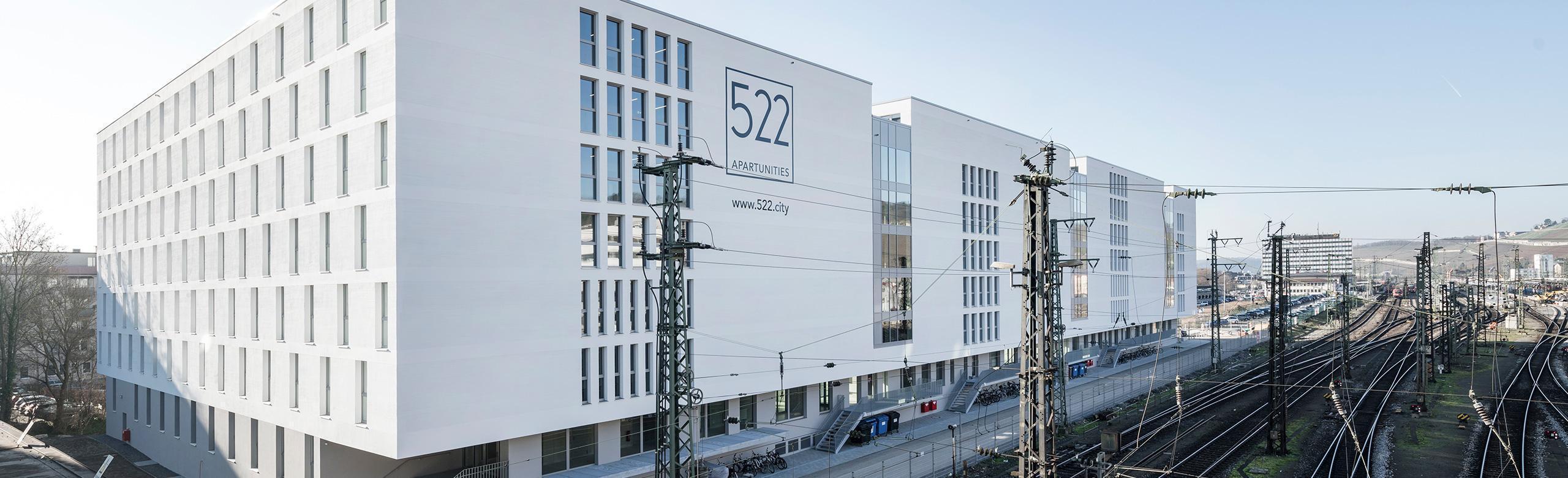

In Würzburg, student hall of residence 522 is located in the immediate vicinity of the railway tracks.

REGUPOL vibration 200

Vibration isolation

REGUPOL vibration 200

Vibration isolation

The approved material REGUPOL vibration 200 is used in the load range up to 0.02 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

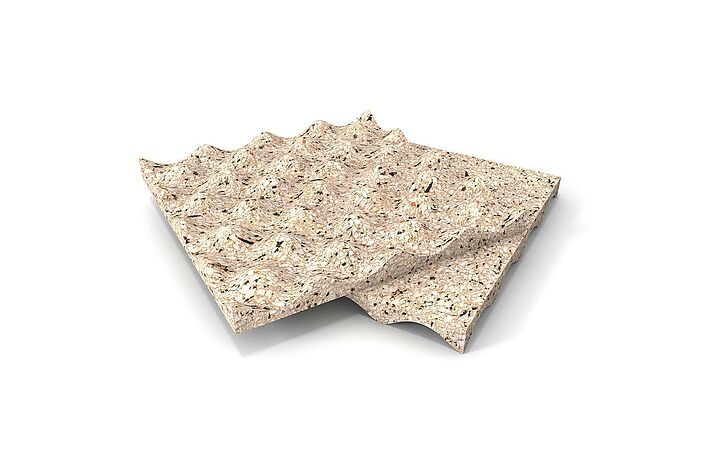

REGUPOL vibration 200 is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.02 N/mm². It can be used in single or multiple layers to achieve natural frequencies of down to 10 Hz, depending on load and material thickness.

REGUPOL vibration 200
Cradle to Cradle Certified® Bronze
EPD

Features


  • Approved by building authorities
  • Load range up to 0.02 N/mm²
  • Natural frequency of down to 10 Hz
  • Progressive spring characteristics
  • Constant natural frequency over a wide load range

Technical Specifications


Material

PUR elastomer composite

Dimensions

Length: 10,000 mm, width: 1250 mm,
thickness: 17 mm

Weight per m²

5.2 kg

Acoustic Sales

Your contact at REGUPOL

We're here to help.

Acoustic Sales
REGUPOL Australia Pty. Ltd.
Sales Team Australia

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUPOL vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
