REGUPOL vibration 450

Vibration isolation

The approved material REGUPOL vibration 450 is used in the load range up to 0.12 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUPOL vibration 450 is a vibration isolation and structure-borne sound de-coupling material for the load range up to 0.12 N/mm² and is used for insulating vertical structural elements. The material is applied as a single layer and can be supplied with integrated installation aid. Natural frequencies of down to 8 Hz can be achieved, depending on load and material thickness.

Save product View range

Projects realised with REGUPOL vibration 450

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUPOL vibration 450.

BRED Joinville-le-Pont Paris

As part of its expansion, the French banking group BRED has constructed a new building in Joinville-le-Pont. This office complex, which meets the latest environmental requirements, is located in a very busy area, in the immediate vicinity of the railway line and the road.

Thus,…

Conservatoire Léo Délibes Paris

Built in 2009, the Léo Délibes Music School now has more than 1000 students and offers a wide range of courses to meet the needs of all learners. The building is located in Clichy in the north of Paris.

The music school welcomes many musicians, who will be able to work together…

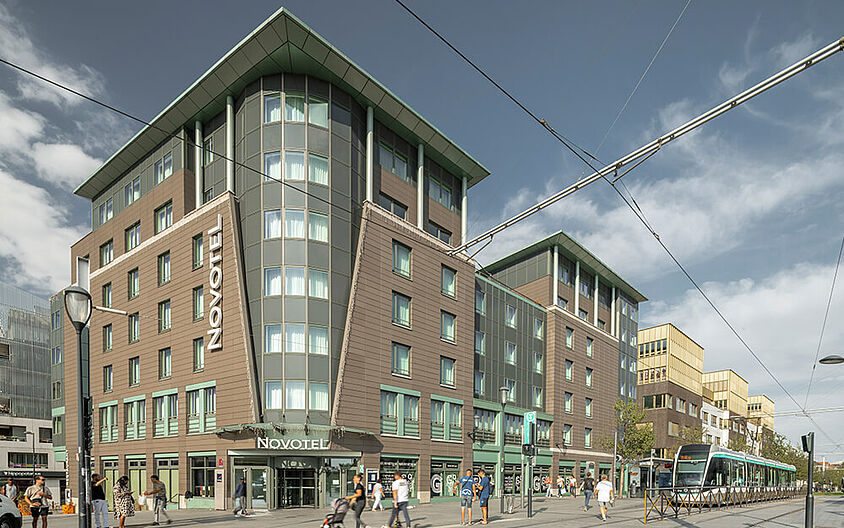

Novotel Saint-Denis Stade Basilique Paris

City hotels with close proximity to metros and tram lines are often confronted with structure-borne vibrations. One example is the Novotel Saint-Denis Stade Basilique near the stadium “Stade de France” in Paris. The hotel is located in the dense suburb Saint-Denis which counts a…

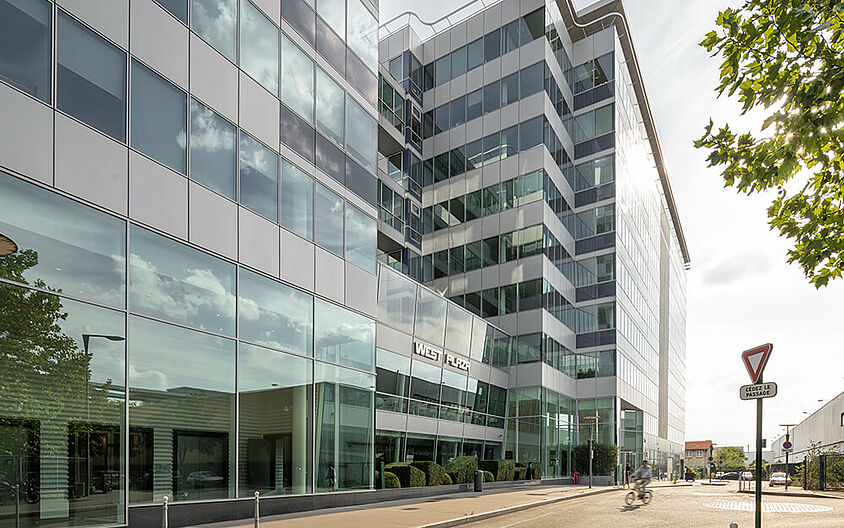

West Plaza Colombes Paris

In Colombes, north-west of Paris, the office building West Plaza has been built beginning of the 2010’s. The architectural firm 3AM had planned and the construction company Vinci built the impressive complex. This development is an outstanding example of a modern mixed-use…

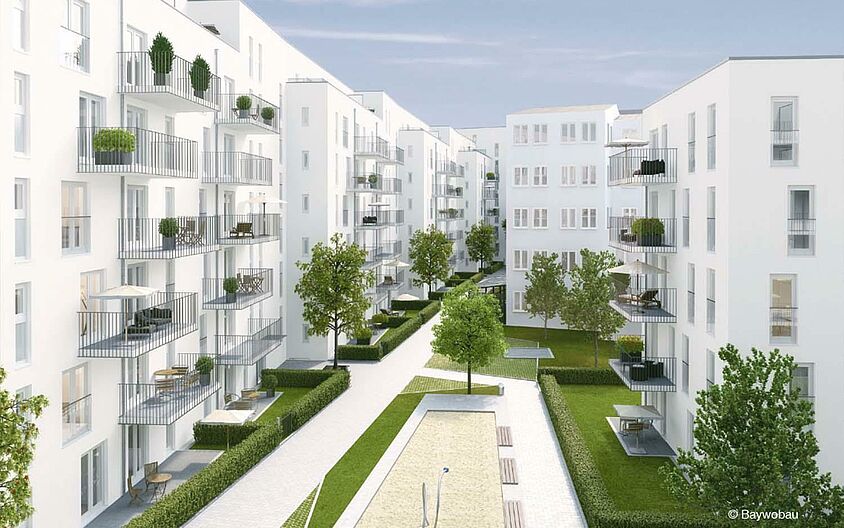

Housing estate Tassiloplatz

The lack of available space in Germany's cities is also leaving its mark on production companies with strong local roots – especially if they are successful and need to expand. After 77 years, the Bernbacher pasta factory had to give up its site at Munich's Tassiloplatz in order…

Approved by building authorities
Load range up to 0.12 N/mm²
Natural frequency of down to 8 Hz
Progressive spring characteristics
Constant natural frequency over a wide load range
Optional installation aid

Save product

Technical Specifications

Material

PU-bonded rubber fibres

Dimensions

Length: 1000 mm, width: 500 mm,
thickness: 25 mm and 50 mm

Weight per m²

12.0 kg – thickness 25.0 mm
24.0 kg – thickness 50.0 mm

Country-specific requirements must be complied with. We will be happy to advise you regarding the product you want to buy.

Downloads

REGUPOL Urban Densification Brochure | 4.41 MB

REGUPOL Mixed Use Brochures | 4.57 MB

REGUPOL vibration 450 TD | 840.42 KB

Technical Data | 6.43 MB

REGUPOL vibration IG | 628.48 KB

Cradle to Cradle Certified^® Bronze | 156.63 KB
